Retractable Golf Impact Screen System
Turn a garage, training room, clubhouse bay or entertainment room into a golf simulator space when it is needed, then roll the screen up when the session is over. This retractable golf simulator screen system can be supplied with the motorized lift structure, impact screen, side protection, top blackout and side blackout components.
2.8m+
Minimum ceiling height, 3.2m recommended
110V / 220V
US / EU motor options available
MOQ 3 Sets
Reference price for installers
A garage-ready retractable golf screen package from around US$860 per set.
This reference configuration is designed for golf simulator installers, dealers and project integrators. With factory-direct supply, installers can lower procurement cost while keeping more room for local installation, design and service margins.
Creates roughly US$1,200 of project price room compared with many market alternatives
Ideal for garage golf simulators, training rooms and indoor golf studios
Custom size, voltage, packaging and OEM options for installer programs
Reference supply price
US$860/set
Main Screen
3m × 3m impact screen
Side Screen
1.8m x 3m, quantity confirmed by project
Flame-Retardant Option
Flame-retardant performance available
Built For
Installers / dealers / OEM customers
The price above is for a reference configuration. Final pricing depends on quantity, size, side screen layout, voltage, packaging and shipping terms. The exact flame-retardant standard and test documentation should be confirmed for the target market.
Why choose a retractable system
Keep the room useful before and after every golf session.
A fixed golf simulator enclosure works well, but it can turn a room into a single-purpose bay. A retractable golf simulator screen lets users lower the screen for practice, coaching or entertainment, then roll it up so the space can return to parking, storage, meetings, training or daily family use.
Limited garage space
The screen rolls upward after use, helping customers keep floor space available for parking, equipment storage or other everyday needs.
Fixed frames limit the room
Wall-mounted or ceiling-mounted structures reduce the footprint of a permanent frame, making the system easier to fit into multi-use rooms and retrofit projects.
Installers need flexible kits
Width, motor specification and kit format can be customized. We can also supply structural parts only, so installers can adapt the system to different job sites.
Retractable screen structure
Designed around screen storage, lift control and room flexibility.
A complete retractable golf impact screen project can include the lift mechanism, impact screen fabric, side protection, top blackout and side blackout. It is made for customers who want to keep a garage, studio or training room useful beyond golf practice.

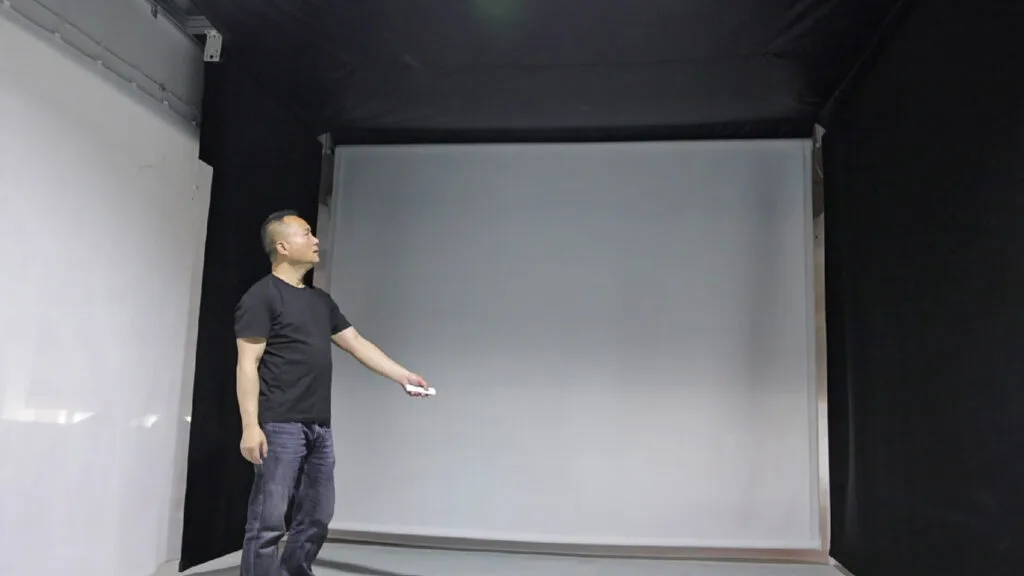

Motorized roll-down control
Remote control is standard, with manual options available. Upper/lower limits, stop-anywhere control and power-off memory are supported.
Aluminum profile support
Sliding rails, mounting brackets and hardware provide structural support for wall-mounted or ceiling-mounted installation.
Complete kit or OEM supply
Order a complete project kit, or customize the parts package and branding for dealers, installers and OEM programs.

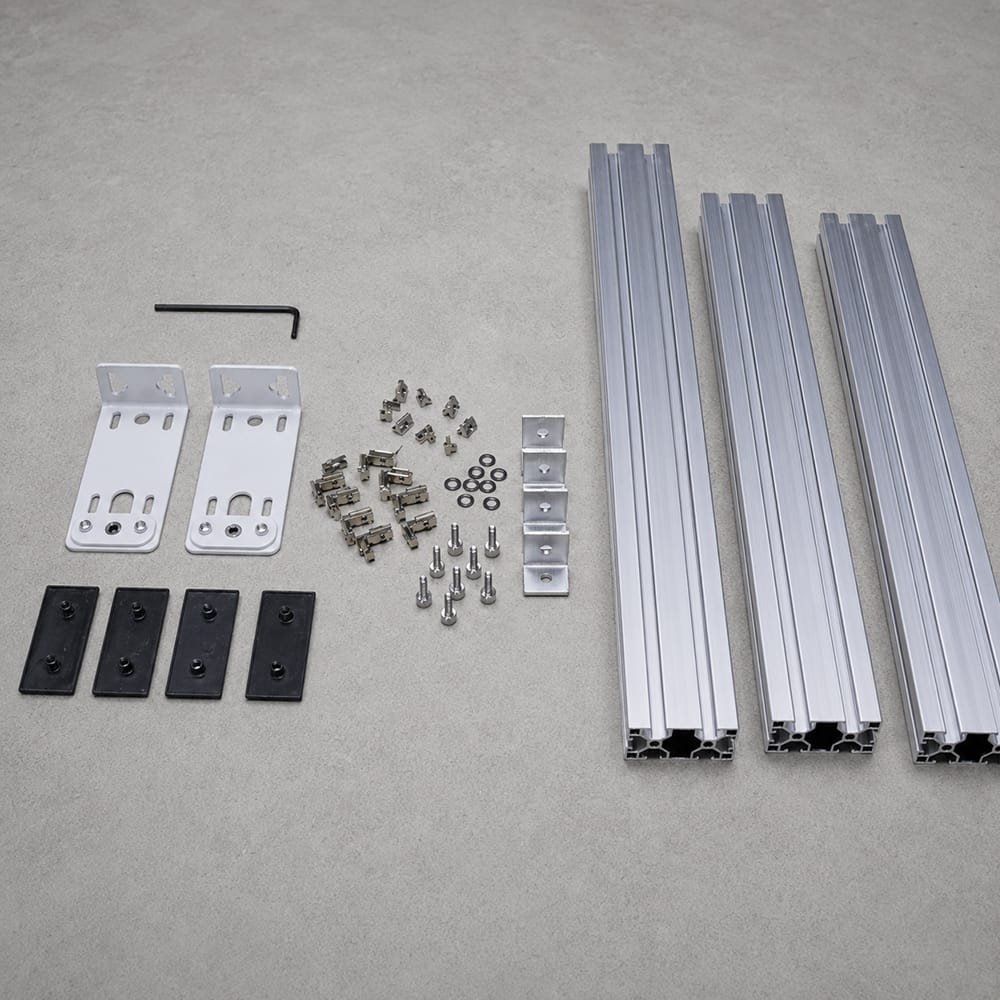

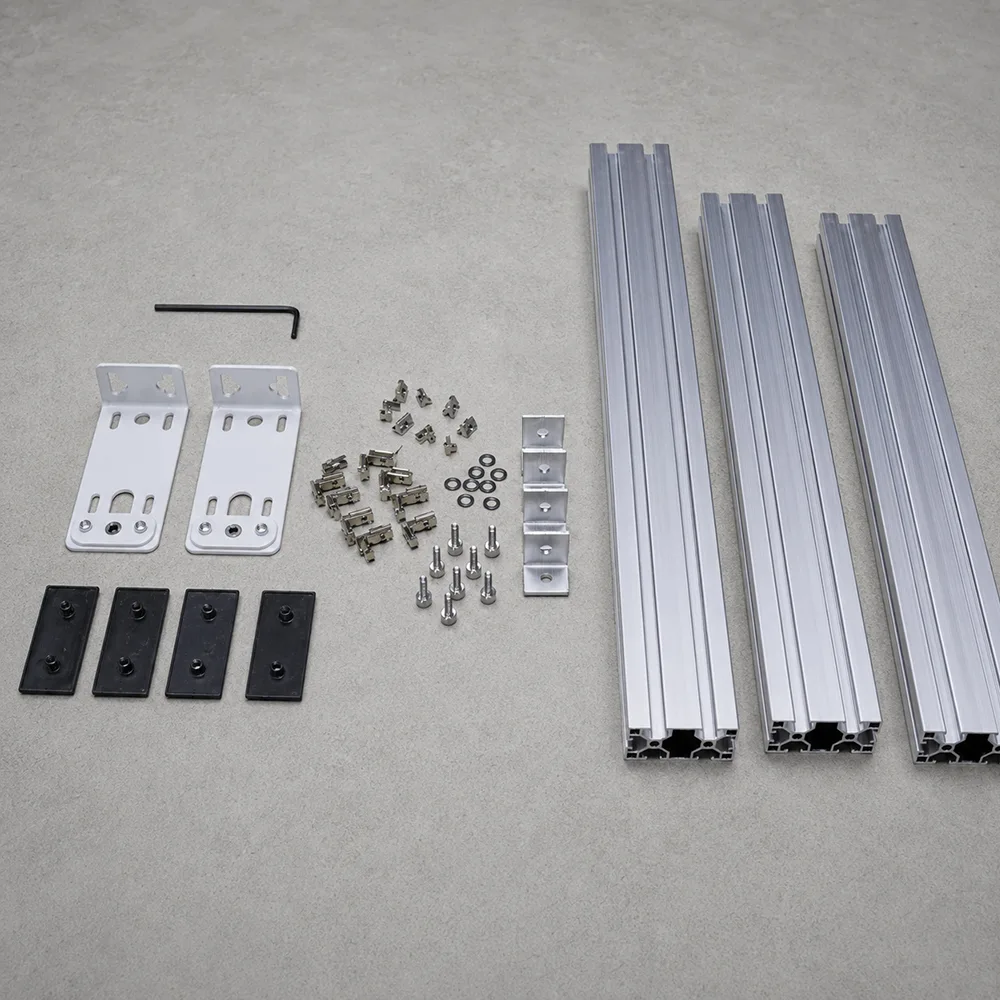

Hardware Kit
Includes aluminum profiles, mounting brackets, fasteners and basic parts for on-site installation.

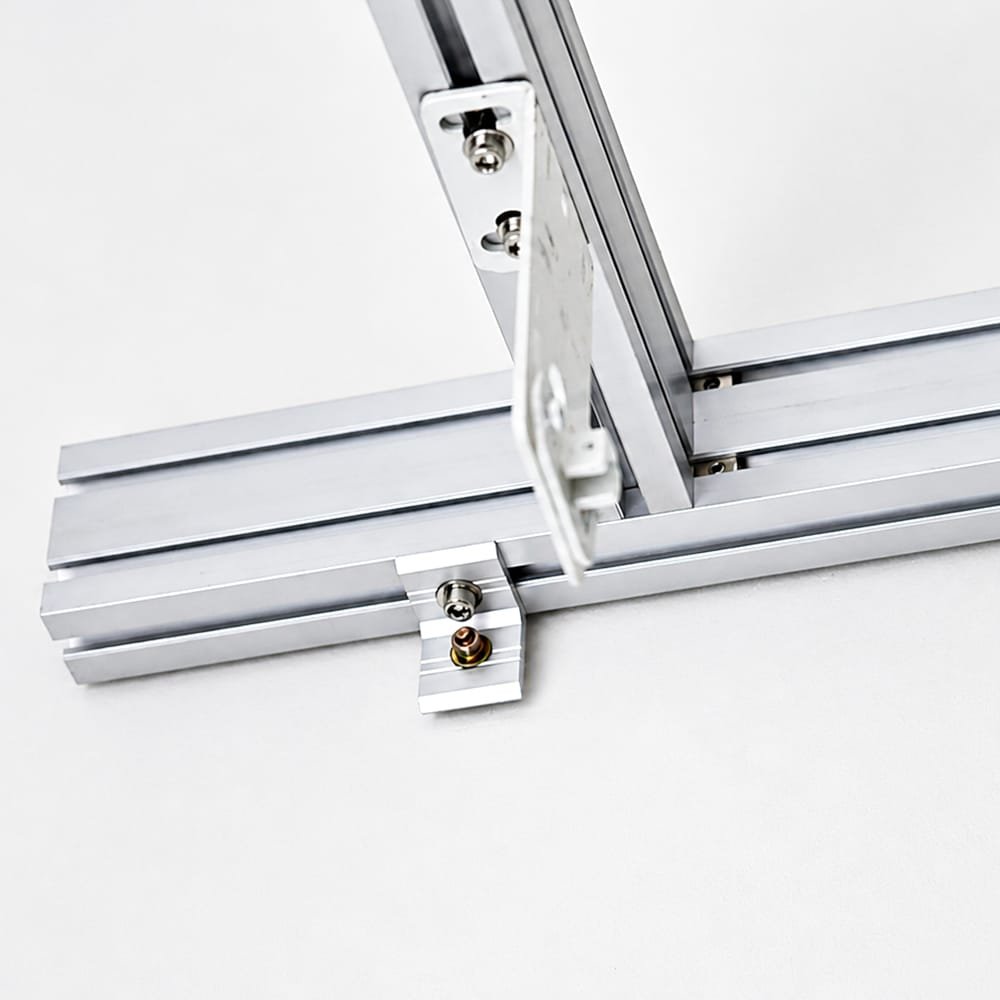

Sliding Rail
Used for positioning and structural connection, allowing adjustment for different project sizes.

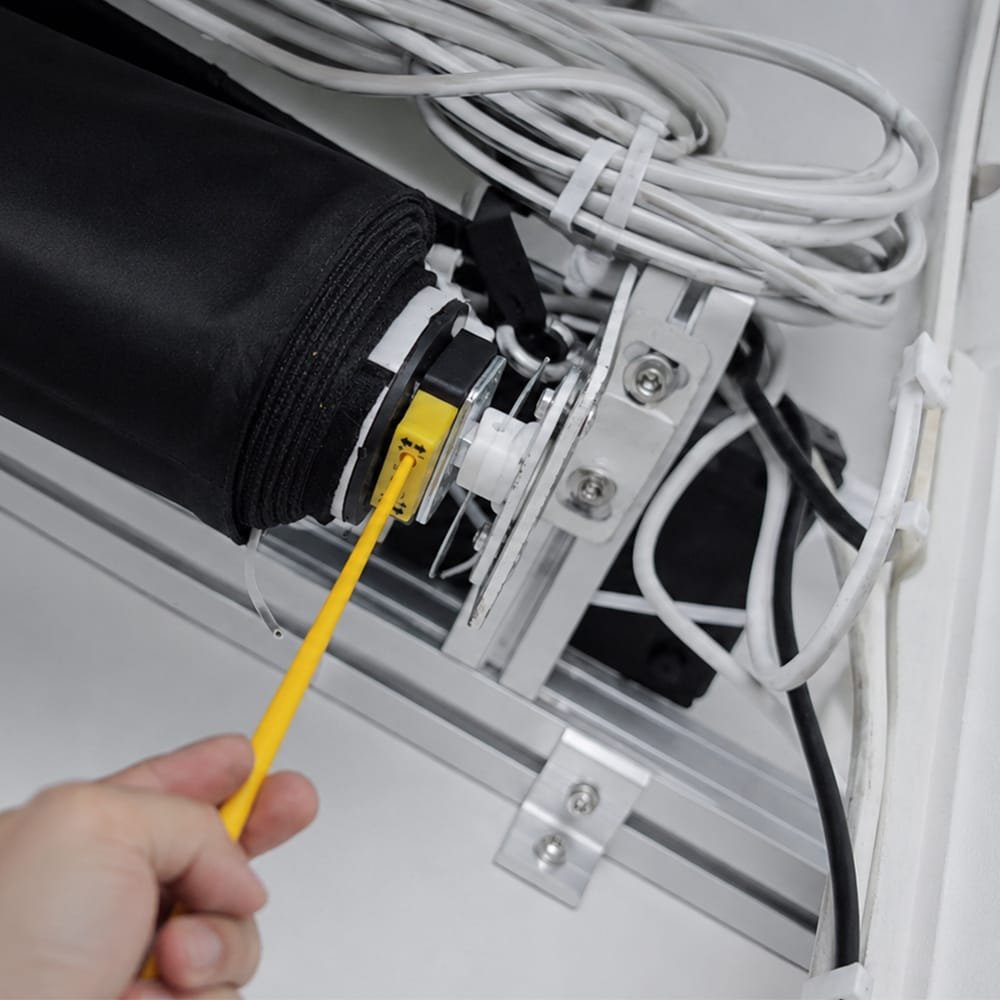

Lift Motor
Supports motorized screen control with voltage and control options for the target market.

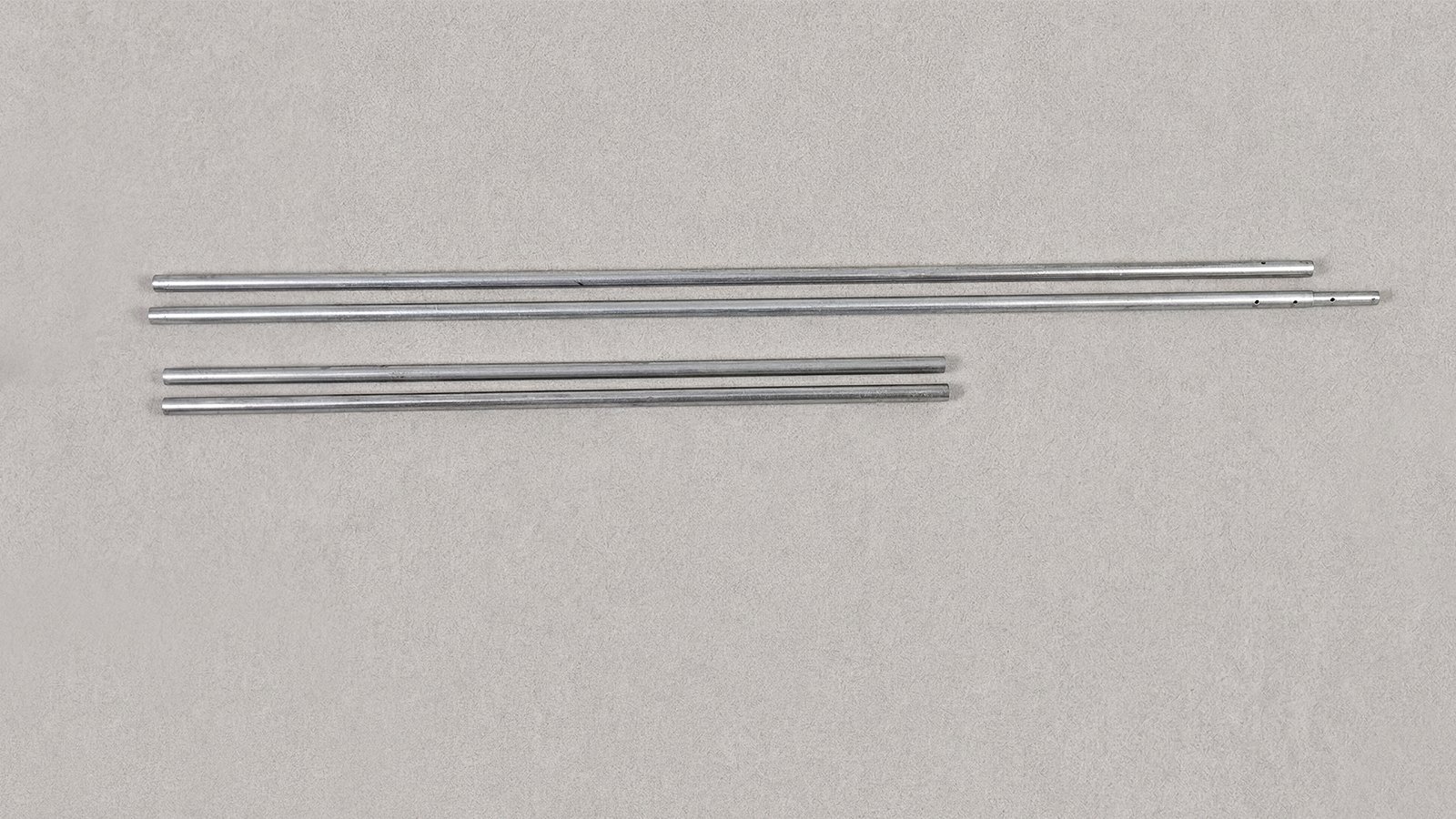

Bottom Weight Bar
Helps the screen hang flat and improves stability during rolling and unrolling.
Kit scope
A retractable golf simulator screen system built for project installation.
The standard project scope focuses on screen storage, impact screen performance, side protection, blackout control and on-site installation. If your customer already has a launch monitor, projector or hitting mat, this system can be supplied to work with those components.
Project kit can include
- Motorized retractable lift system, motor and remote control
- Aluminum rails, roller tube, bottom weight bar and mounting brackets
- Golf impact screen fabric
- Side protection, top blackout and side blackout
- Screw pack, installation manual and installation video
Not included by default
- Launch monitor / golf radar / sensor system
- Projector, projector mount and projector cables
- Hitting mat, flooring, software and computer equipment
- Local installation service and job-site construction materials
MOQ 3 Sets
Suitable for dealers, installers and project buyers starting with small batches.
About 20 Days
Typical lead time; final timing depends on size, quantity and packaging requirements.
2-Person Install
Typical projects can be installed in about 2 hours by professional installers.
Segmented Packing
Designed to reduce package length for sample orders and bulk shipments.
Module 01

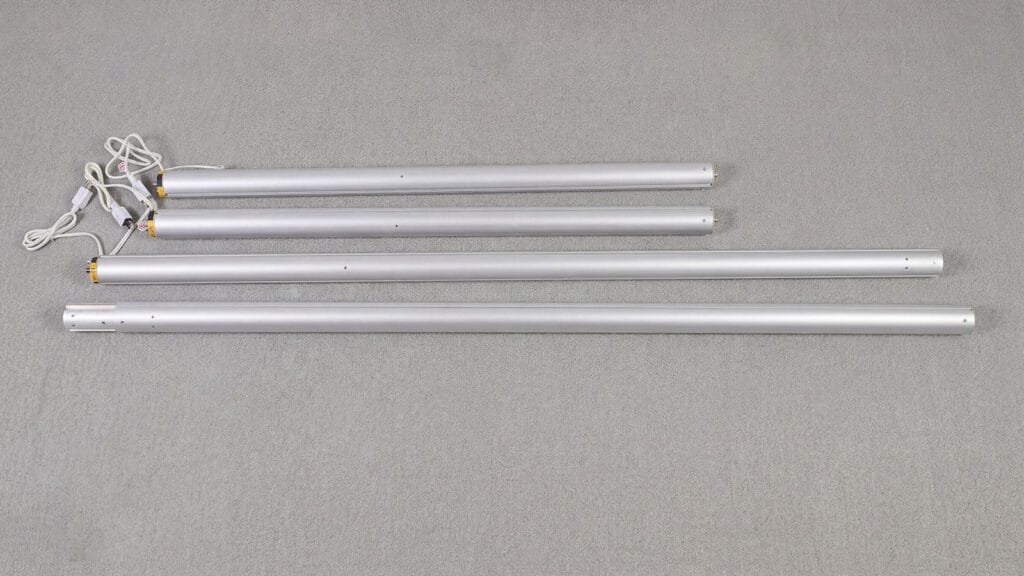

Roller Tube System
Aluminum tube, tube connectors, tail plug, crown and wheel support screen rolling, unrolling and side connection.
Module 02

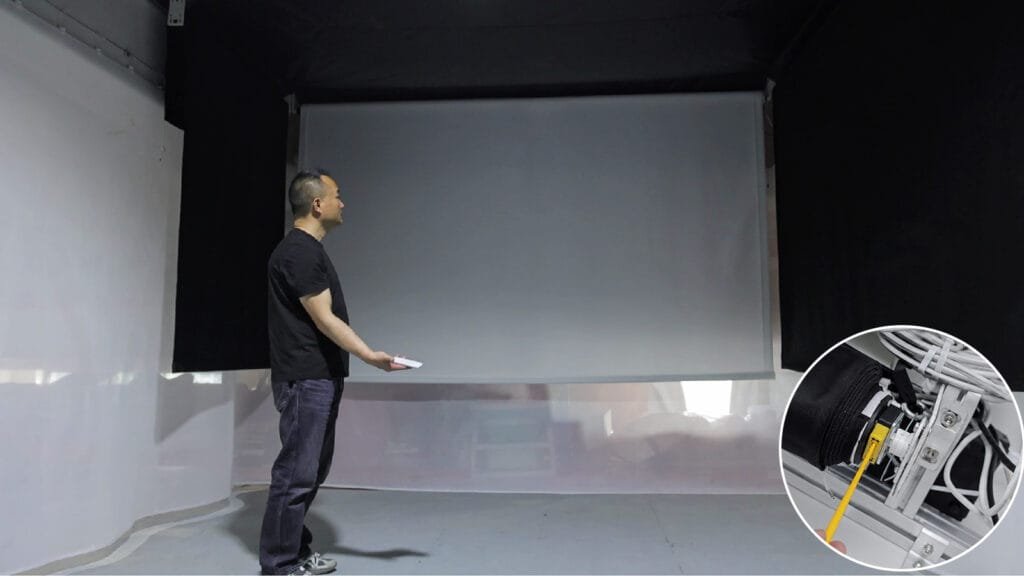

Motor & Control System
Motor, remote control and adjustment parts support one-touch rolling, limit setting and grouped motor control.
Module 03
Aluminum Mounting Structure
Aluminum profiles, brackets and angle connectors support wall-mounted or ceiling-mounted installation.
Module 04
Bottom Weight & Stability
Bottom bar, weight parts and webbing help the screen hang naturally and reduce movement during rolling.
Module 05

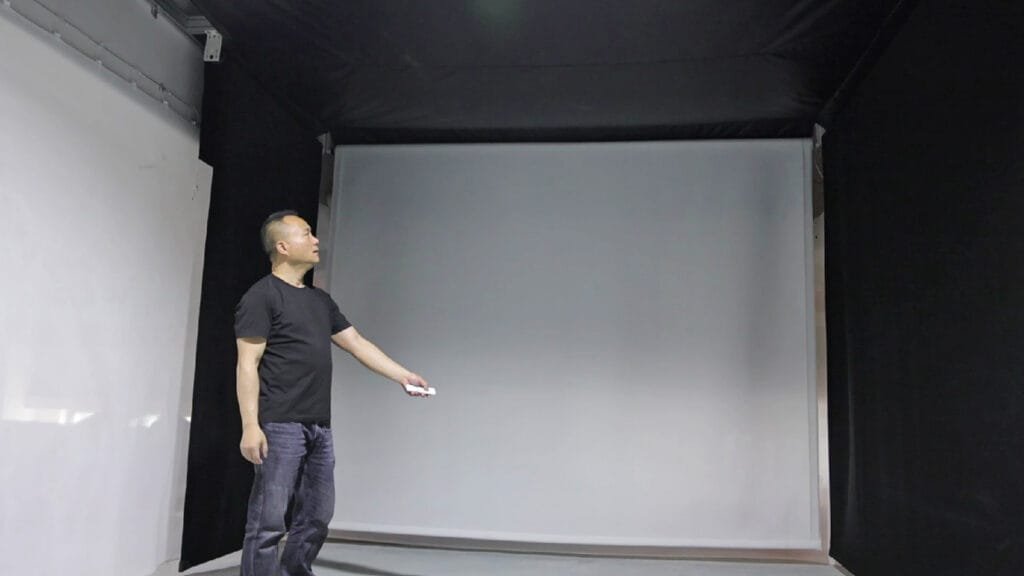

Screen & Blackout System
Impact screen, side protection and top blackout create the hitting and projection area.
模块6

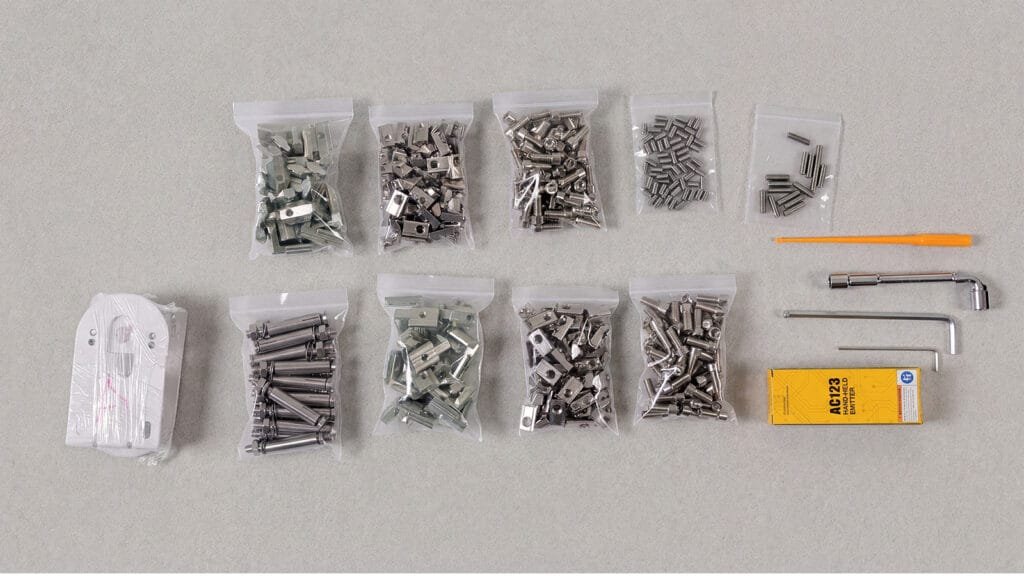

Hardware & Tool Kit
Screws, expansion bolts, wrench, manual and installation video help installers complete setup and adjustment.
Unboxing & parts overview
Show installers exactly what comes in the retractable golf screen package.
A retractable golf simulator screen is more complex than a simple impact screen. An unboxing video helps installers see the segmented packing, motor and remote, rail hardware, screen fabric and blackout components before the job starts.
- Show outer cartons, segmented packing and protective packaging
- Show motor, remote control, rails, roller tube, bottom bar, brackets and screw pack
- Show impact screen fabric, side protection, top blackout and side blackout
- Show installation manual, tool kit and pre-installation checks

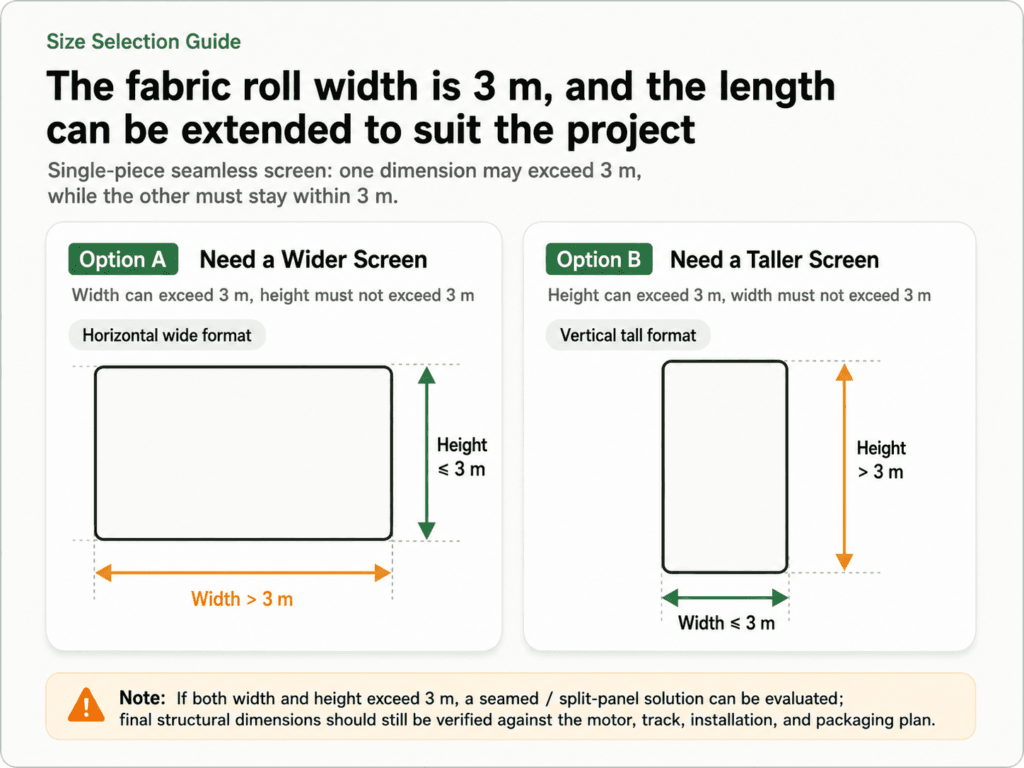

Fabric width and size rules
For a seamless impact screen, confirm the 3m fabric direction first.
Our current impact screen fabric width is 3m, while the length direction can be extended by project. For a single seamless screen, if the screen width is over 3m, the height should stay within 3m. If the screen height is over 3m, the width should stay within 3m.
Width over 3m
Suitable for wider garage golf simulator and studio layouts; height follows the 3m fabric width direction.
Height over 3m
Suitable for taller spaces or special training bays; width follows the 3m fabric width direction.
Both width and height over 3m
Spliced or multi-panel solutions can be evaluated if the customer accepts seams. Seam method and visual result must be confirmed by project.
Three Screen Fabric Options (Plus by Default, Custom Available)
Plus – 490gsm Golf Impact Screen Fabric
The Plus golf impact screen fabric (490gsm) is ideal for home simulators and moderate use. It lasts about three months under regular impact, reduces noise, minimizes ball rebound for safety, and offers a clear projection surface—perfect for personal setups.
Ultra – 540gsm Golf Impact Screen Fabric
The Ultra golf impact screen fabric (540gsm) offers outstanding durability for 6–12 months of frequent use. Its heavy-duty build enhances noise absorption and minimizes ball rebound for a safer, quieter experience. Ideal for home setups, commercial simulators, and pro-level use.
Fireroof Ultra – 560gsm Fire-Resistant Golf Impact Screen Fabric
The Fireroof Ultra golf impact screen fabric (560gsm) combines certified fire resistance with top-tier durability. Built for heavy use, it offers excellent noise reduction and low ball rebound for a safe, focused environment—ideal for commercial venues and studios needing advanced safety and performance.
Core specifications
Key specifications and custom project details.
Every installation space has different ceiling height, room width, wall or ceiling conditions. We recommend the right retractable golf screen system based on room size, target screen size, voltage standard and fabric direction.
| ITEM | SPECIFICATION | PROJECT NOTES |
|---|---|---|
| Supply scope | Retractable lift system + impact screen + side protection + top blackout + side blackout | Projector, launch monitor, hitting mat, software and flooring are not included by default. |
| Mounting method | Wall-mounted or ceiling-mounted | Minimum ceiling height is about 2.8m, 3.2m is recommended. About 30cm clearance is recommended behind and beside the screen. Final installation space should be confirmed by site photos. |
| Motor options | US 120V / EU 230V, customizable by market voltage |
US: 120V, 170W, 1.4A, 20N·m, 17rpm, IP44 EU: 230V, 195W, 0.25A, 20N·m, 17rpm, IP44 |
| Control functions | Remote control standard, manual control optional | Supports upper/lower limits, stop at any position, and power-off memory. Group control can synchronize main and side screens. |
| Safety protection | Overheat protection, impact brake, shock-resistant gear/brake | Suitable for indoor golf spaces that require frequent rolling and storage. Ball impact test video to be added. |
| MOQ & lead time | MOQ 3 sets, about 20 days lead time | Segmented packing helps reduce package length. OEM packaging can be discussed. |
| Warranty | 2-year motor warranty | Motor warranty is 2 years. Warranty policy for other parts should be confirmed. |
Reference configuration: 3m x 3m main screen + 1.8m x 3m side screens x 2.
The following parts list is a reference for one complete project. The final bill of materials will be adjusted based on screen size, mounting method, voltage standard, side screen needs and blackout coverage.
Main screen: ：3m×3m
Side screen：1.8m×3m
Motors：3 pcs
Remote control:：1 pc
Includes screen and blackout fabric
| MODULE | QTY / SPECIFICATION | FUNCTION |
|---|---|---|
| Roller system | Approx. 6.1m aluminum tube; cut by project | Supports screen rolling, rotation and side connection. This is the core storage structure of the retractable system. |
| Bottom & weight | Cut by main and side screen sizes | Helps the screen hang naturally, reduces movement during rolling and improves screen flatness. |
| Aluminum frame | 800mm × 4, 600mm × 4, 400mm × 4 and other sections | Provides wall or ceiling mounting support. Segmented design helps packing and installation. |
| Mounting hardware | Matched by project | Used to fix rails, brackets and wall/ceiling mounting points, reducing extra local purchasing. |
| Motor & control | Motors ×3, remote ×1, brackets ×6 | Controls main and side screen rolling. Voltage can be customized for different countries. |
| Screen & blackout | Custom by project size | Creates the simulator screen area and reduces side light leakage and visual distraction. |
| Tools & instructions | 1 set | Helps installers complete on-site assembly and adjustment. |
Installation reference
Typical projects can be installed by two people.
The system can be wall-mounted or ceiling-mounted and should be installed by professionals. A typical project includes positioning, fixing brackets, installing rails, motor adjustment and screen rolling tests. Installation time is about 2 hours and should be confirmed based on site conditions.
FAQ
Common questions before ordering.
If the room size, mounting method or equipment combination is special, send site photos and the target screen size first. We will confirm the recommended configuration by project.
Does the kit include the projector and launch monitor?
No. The default system does not include a launch monitor, projector, hitting mat, software, computer or flooring.
What ceiling height is required?
The minimum recommended ceiling height is about 2.8m, and about 3.2m is preferred.
Can the motor match different voltages?
Yes. We can supply US 120V or EU 230V motors to reduce the need for extra transformers.
Can both width and height exceed 3m?
If the customer accepts seams, spliced or multi-panel solutions can be evaluated. A single seamless screen must follow the 3m fabric width rule.
Is installation complicated?
Typical projects can be installed by two people. Professional installation is recommended.
What is the warranty?
The motor warranty is 2 years. Warranty policy for other parts should be confirmed.
这里还有个联系我们的板块，来不及做～
Project sizing for quote
Send room dimensions to get a custom retractable golf screen recommendation.
A retractable golf simulator screen is not decided by screen width alone. Ceiling height, mounting point, wall or ceiling condition, swing space and storage position all matter. Please provide the details below so we can evaluate the solution quickly.
- Room width and ceiling height
- Photos of wall or ceiling mounting area
- Available clearance behind and beside the screen
- Target screen width and height
- Country, voltage, quantity and OEM packaging needs
- Whether seams or multi-panel screen solutions are acceptable
A better fit for multi-use rooms than a fixed simulator bay.
Supply retractable, customizable golf simulator screen systems for garages, studios, academies and OEM golf simulator projects.
